The SSX 19-pin connector has been designed for stable coupling and fast
wiring possible. Indestructible, super safe and easy to handle.
Socapex 19 pin series compatible. UL Compliant.
-
Anticorodal 6082 alloy,
the premium material we employ for our connectorsAnticorodal 6082 alloy,
the premium material we employ for our connectorsWe made it indestructible
We made it indestructible
-
Syntax® SSX series is totally compatible with standard Socapex 19-pin series, is extremely robust being made of thick wall construction machined aluminium alloy, with hard wearing black painted or anodized finish.
-
The thermoplastic insulating insert enables the use of removable contacts, either crimp or solder. The unit is completely IP67 watertight when mated. Electrical safety and compliance are guaranteed by internal insulation of the shells, obtained through a safety insulating sleeve preventing electric shock, as well as “first make last break” ground contacts. Locking rings and backshells are designed for easy handling.
-
-
The true value of things
is in the detailsThe true value of things
is in the detailsAnti-rotation shell and insert design
Anti-rotation shell and insert design
-
The anti-rotation inserts are available in different colors.
For custom color options, please contact our sales department. -
-
We cannot trust anyone else,
we design and machine our contacts
entirely in houseWe cannot trust anyone else,

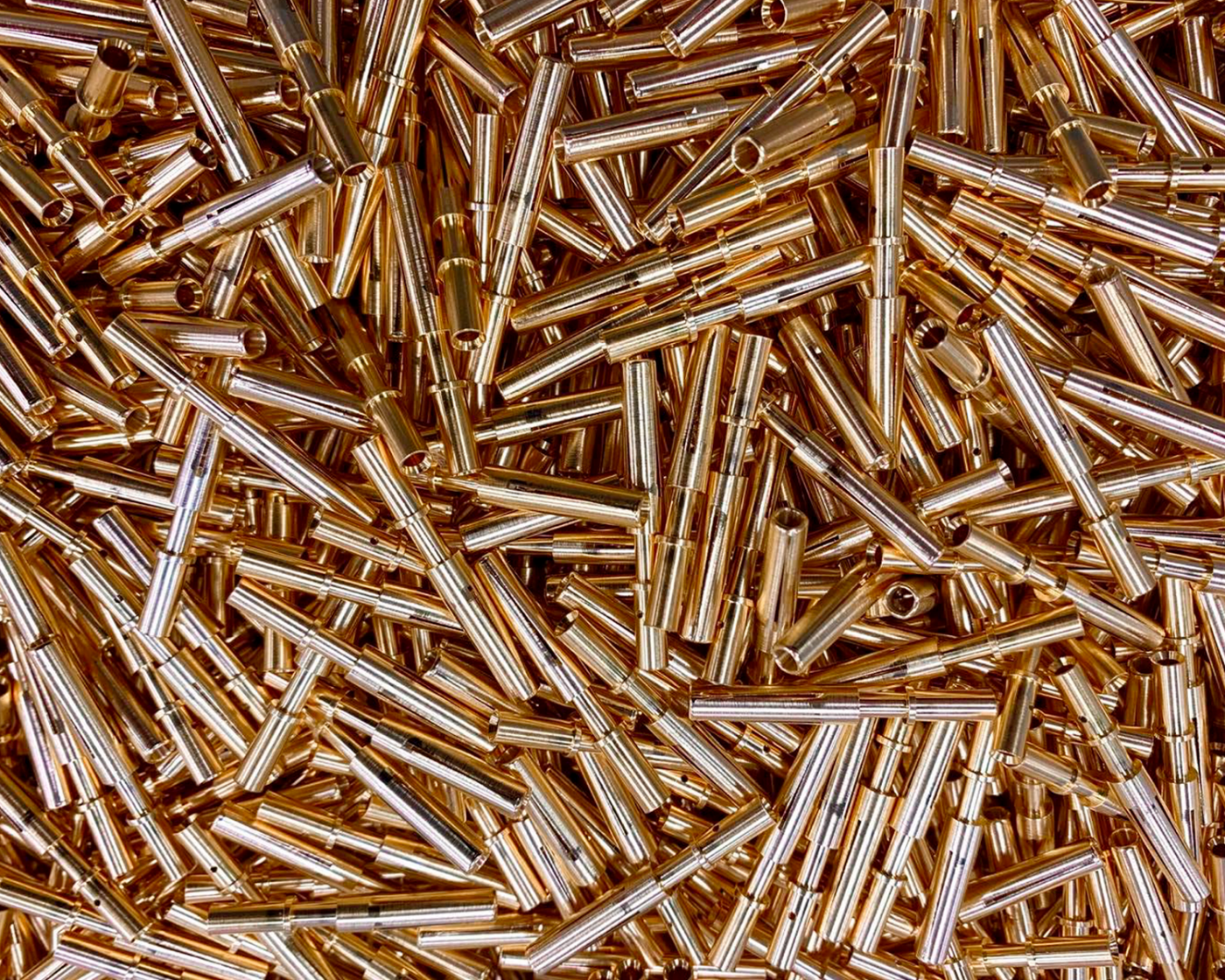

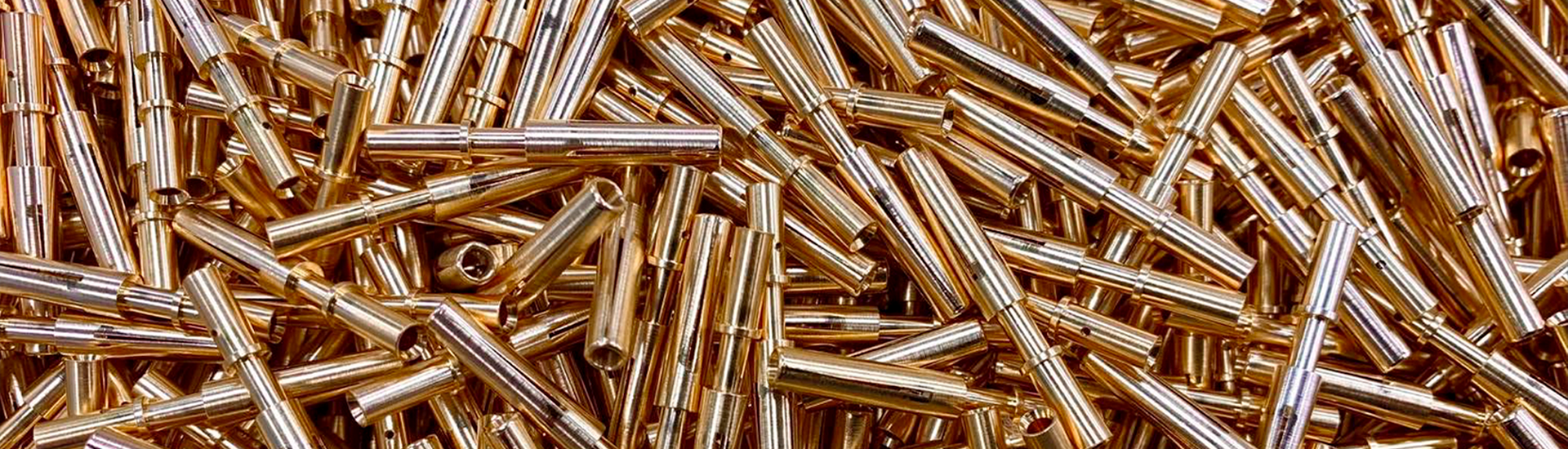

we design and machine our contacts entirely in houseSize 11 contacts
Rated current 23amp, max current 41amp.
The heart of the system.Size 11 contacts
Rated current 23amp, max current 41amp.
The heart of the system. -
Advanced earth contacts
Advanced earth contacts
All SSX connectors are equipped with the 7 central contacts in an advanced position for “first make last break” ground contact.
-
Common ground
Common ground
Two rings can be fitted to the central contacts to create common grounding of the 6 circuits’ earths. (optional)
-
-
-
-
It's not a matter of vanity,
each design has its purposeIt's not a matter of vanity,

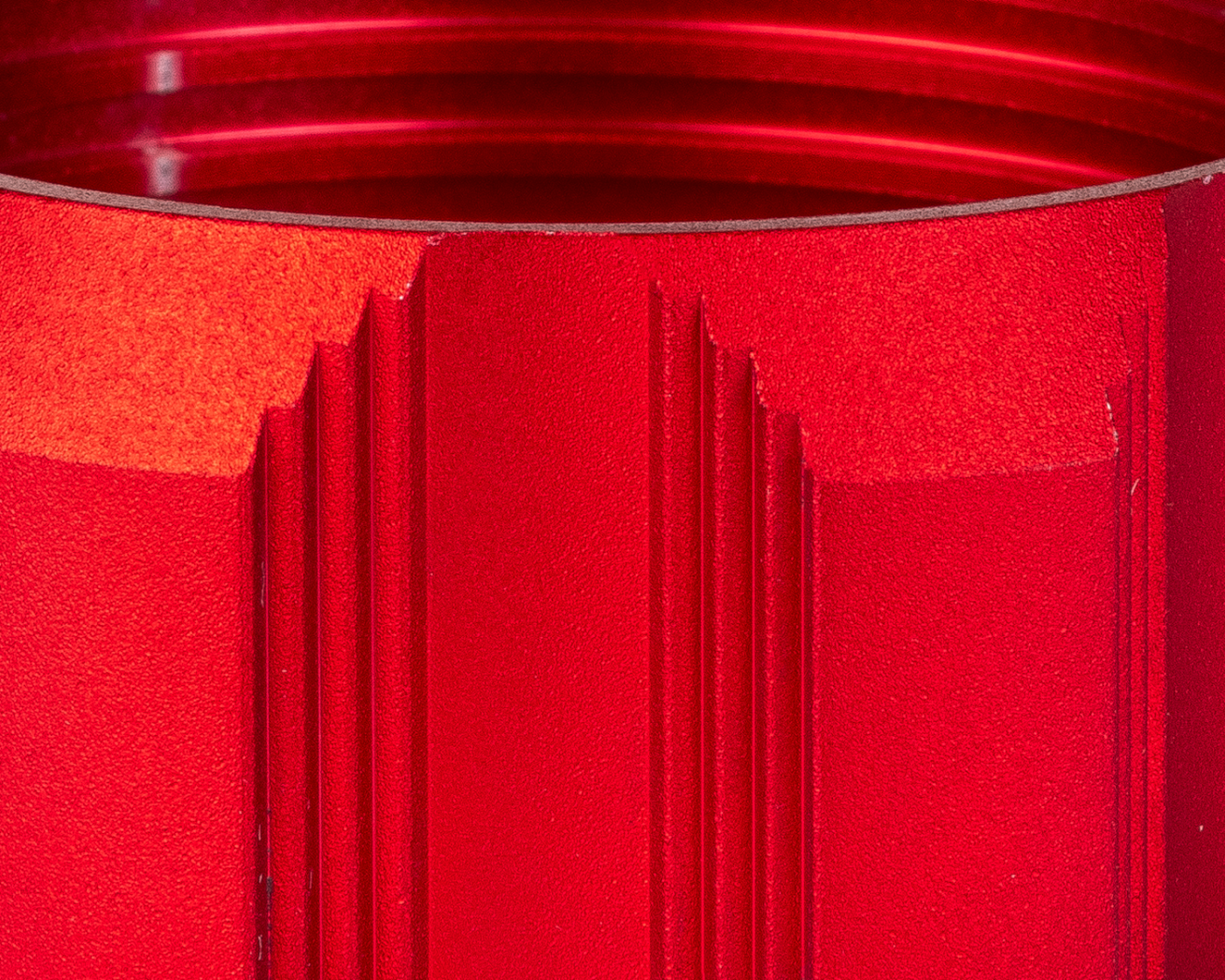

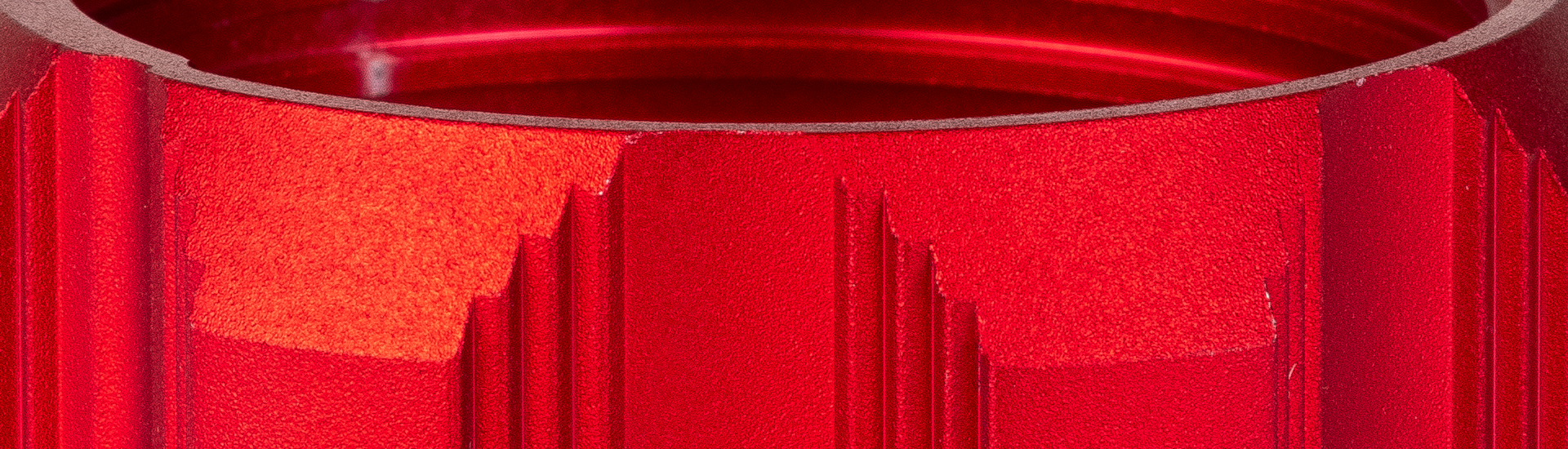

each design has its purposeOur locking rings
Heavy-duty, rubber coated or finger-gripOur locking rings
Heavy-duty, rubber coated or finger-grip -
-
Multiway SSX rubber grommets
Multiway SSX rubber grommets
Manage your connections
the smart wayManage your connections the smart way
Syntax® SSX Multiway connectors are alternative versions of the SSX standard inline connectors, designed for quick and easy managing of breakout applications. The Syntax proprietary 4, 6 or 8 way rubber grommets, fitted in the cable gland, guarantee optimal cable retention and IP67 watertight seal for outdoor use.
-
Metric cable glands
Metric cable glands
3 cable gland options on 1 backshell
3 cable gland options on 1 backshell
Metric thread cable glands allow more versatility compared to PG or other thread types. On the inline versions of the SSX connectors three different versions of M40 cable glands can be fitted, resulting in 15 to 32 mm combined cable clamping range for standard inline SSX connectors.
-
Metric cable glands
Metric cable glands
Dimensions
Dimensions
V (thread size) SØ (clamping range) K Z L Reduced M 40 15 - 23 mm 46 mm 10 mm 52 mm Normal M 40 19 - 28 mm 46 mm 10 mm 52 mm Oversize M 40 22 - 32 mm 46 mm 10 mm 52 mm -
IP67 protective caps
IP67 protective caps
Waterproof your connectors
Waterproof your connectors
Safety is improved as contacts are protected against dust and water, even when the connectors are not mated.
-
-
Need a cable for your SSX connector?
Need a cable for your SSX connector?
Syntax® professional energy cables are flexible and easy to handle. Suitable for industrial application, field equipment, emergency lighting for public areas, audio and video technology. The best choice when winding operations are intensive.
-
Overall dimensions
Overall dimensions
-
Inline female
Inline female
With coupling threads
With coupling threads
Dimensions in mm
-
Inline male
Inline male
Heavy duty locking ring
Heavy duty locking ring
Dimensions in mm
-
Inline male
Inline male
Finger grip locking ring
Finger grip locking ring
Dimensions in mm
-
Inline male
Inline male
Rubber coated locking ring
Rubber coated locking ring
Dimensions in mm
